In-house manufacturing
Insulated panels, fast and in volume
We manufacture EPS sandwich panels in-house, so you get consistent quality and short lead times without waiting on outside suppliers.

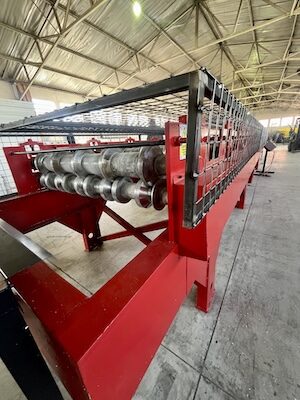

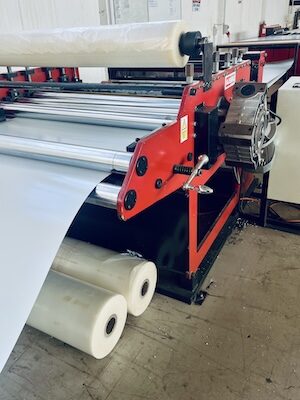

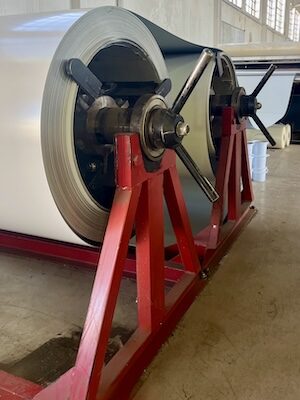

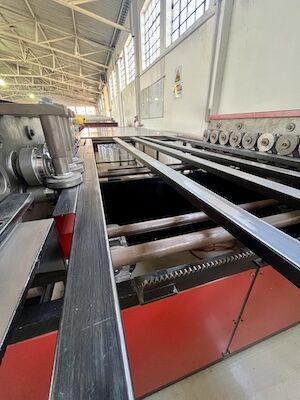

Our panels are rolled, cut and bonded to your spans in our Gauteng factory. They join with a tongue and groove system and come in a smooth or fluted (micro-rib) finish, ready for cold rooms, freezer rooms, prefab buildings, park homes, cladding and container insulation.
40 - 150mm
panel thickness
1170mm
standard cover width
7 - 10 days
lead time from order
Panel properties
Built for South African conditions
Thermal efficiency
A medium density EPS core keeps heat in or out, cutting energy costs for cooling and heating.
No rot, warp or rust
Panels do not rot, warp or corrode in damp conditions, making them ideal for cold rooms and chillers.
Strong and light
High compressive strength with a pre-stressed skin, yet light enough for quick installation.
Low water absorption
The closed-cell core resists moisture and condensation, suited to external applications.
Fast to install
Wide 1170mm panels mean fewer joints and faster installation, saving labour costs.
Recyclable core
EPS is recyclable and supports energy-efficient, greener building projects.
Specifications
Panel options
| Option | Details |
|---|---|
| Thickness | 40mm, 50mm, 75mm, 100mm and 150mm |
| Core | EPS (expanded polystyrene), 15DV standard. Ask us about Rockwool and polyurethane |
| Skin | 0.5mm Chromadek, single or double sided |
| Profile | Smooth or fluted (micro-rib). The fluted profile adds stiffness |
| Width & length | 1170mm cover width, cut to your required length |
| Roof panels | DPR roof panels available |
Accessories
Flashings, channels and angles
To finish your installation neatly, we can supply matching Chromadek and galvanised accessories on request, folded to suit your panel thickness.
Applications
Where our panels are used

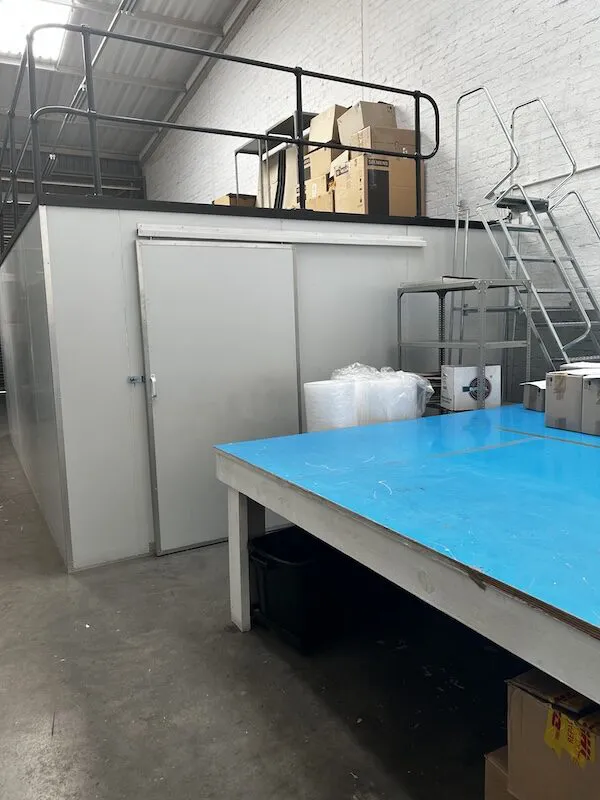

Cold & freezer rooms
Superior insulation for food, pharmaceutical and logistics storage.

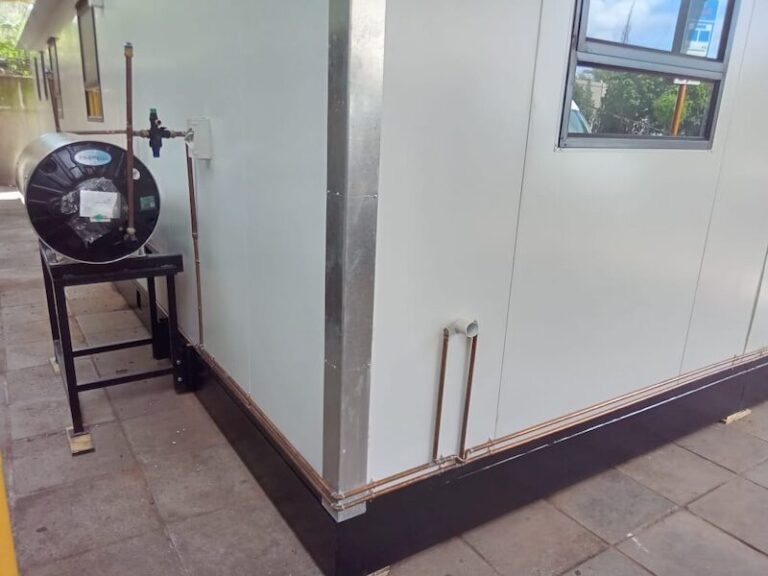

Prefab buildings
Quick-to-erect walls for offices, classrooms and more.
Park homes
Lightweight, energy-efficient panels for comfortable park homes.

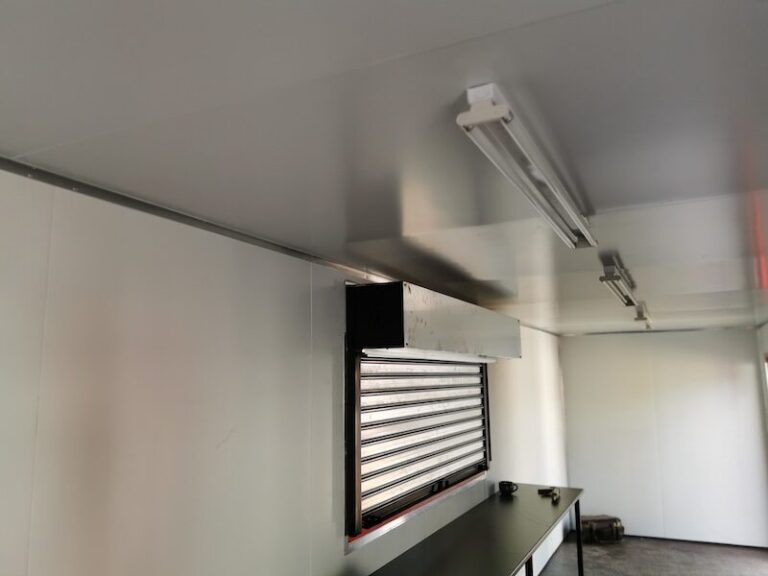

Container insulation
Line containers for offices, homes or shops with excellent condensation control.
Need panels for your project?
Send us the thickness, finish and quantities you need, or your drawings, and we will quote you quickly.
FAQ
Insulated panel questions
What is the lead time on insulated panels?
Panels are made to order, typically within 7 to 10 days from order confirmation, depending on quantities.
What thickness do I need?
It depends on the application. 50mm to 75mm suits most buildings, while cold rooms and freezer rooms need 100mm to 150mm. We will advise you when you enquire.
What is the difference between smooth and fluted panels?
Smooth panels give a clean, flat finish. Fluted (micro-rib) panels have a ribbed profile that adds stiffness and resistance to impact.
Do you supply the fittings too?
Yes. We can supply U-channels, angles, capping, doors, windows and cold room hardware on request to complete your installation.
Free quote
Get an insulated panel quote
Tell us the application, thickness, finish and quantities, or send your drawings. We will come back to you with a detailed quote.
